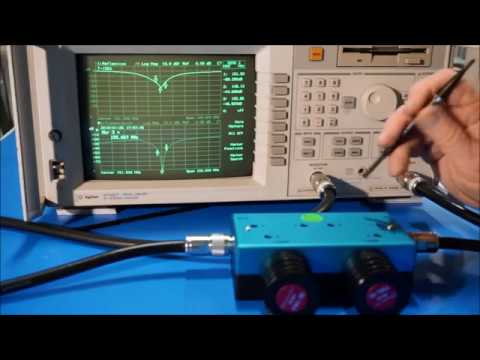

This video is about checking the tuning and adjusting the tuning on a tel aviv isolator i've got these cables disconnected they've hit display here you know we run measure one here we're looking at reflection so I hit display normalize and that normalizes it across here then I go to measure two and it's on transmission and that's the trace down here and right now it's down off the bottom here because we have nothing connecting these two put these together and you see that this line now has come up here at zero we'll make sure it's normalized by redoing that okay so know it's normalized and you notice that we see about minus 30 to minus 40 here across here this is minus 50 and that's plus 50 from 151 point five which is the test frequency we were using and the cable length here has been selected to be a half wavelength multiple at the frequency we want to test to make sure that whatever's on this end of the cable is the same as on this end of the cable as far as match is concerned I put the isolator here this is the input this is the output this is a reflection port on this analyzer the RF output goes in here comes out here and goes to the other port and here's the results that we have on the two frequencies the measure one we're looking at the return loss here it's 31 DB a 151 five which is really good it's still 20 dB at 148 and 155 which is acceptable as well so it can work over that range without having match input or output problem and then when we go to measure 2 and put the markers up for that again we're at point 4 8 something about a half a DB of loss on a dual isolator here so it meets actually exceeds the spec that we have and it's a 0.6 0.7 almost point 8 at the other two frequency so it's still usable if you're only going a channel over one way or the other you're probably okay but if you have to go further than that then we have to do some tuning okay I've rethis thing so that the output is now being driven by the network analyzer in the output to the input the network analyzer RF input port here's is connected to the input side the curve here is showing that we're still matched so the input I mean the output side is is matching well it's 30 DB or so looks like it's uh and and then we're looking at the curve here we're at 67 dB at 150 one point five which is a little off from where the null is here know who the best case we're at 42 DB and 49 dB at 155 148 so that's why you might have to do some tuning if you.
